Safety Glass

Flat Heat Strengthened

Thickness Range	:	5 mm - 19 mm
Maximum Size	:	2440 x 5000 mm
Minimum Size	:	300 x 300 mm
Low-E glass Emissivity Value 0.01 % Standard ASTM C-1048 & BS.EN.1863

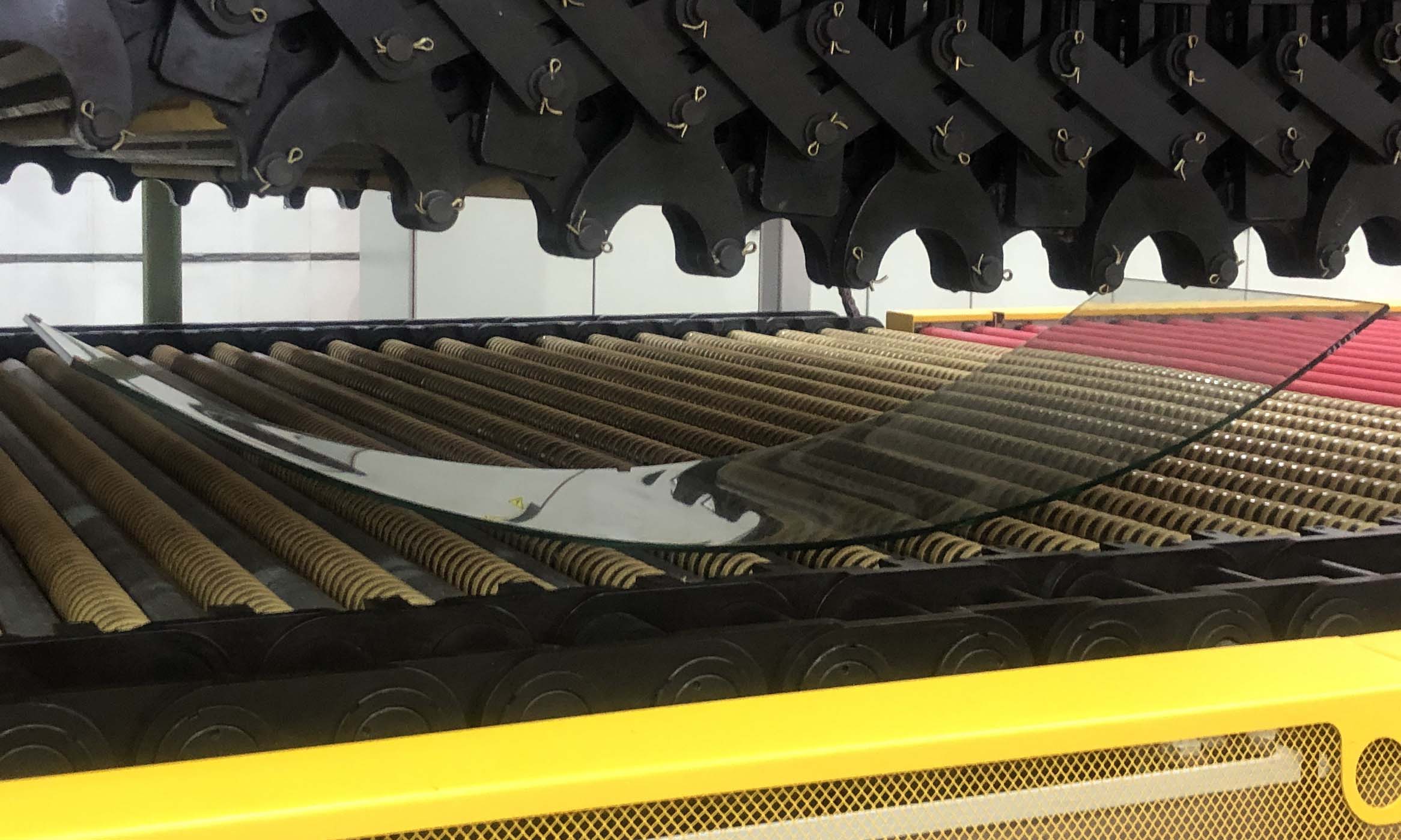

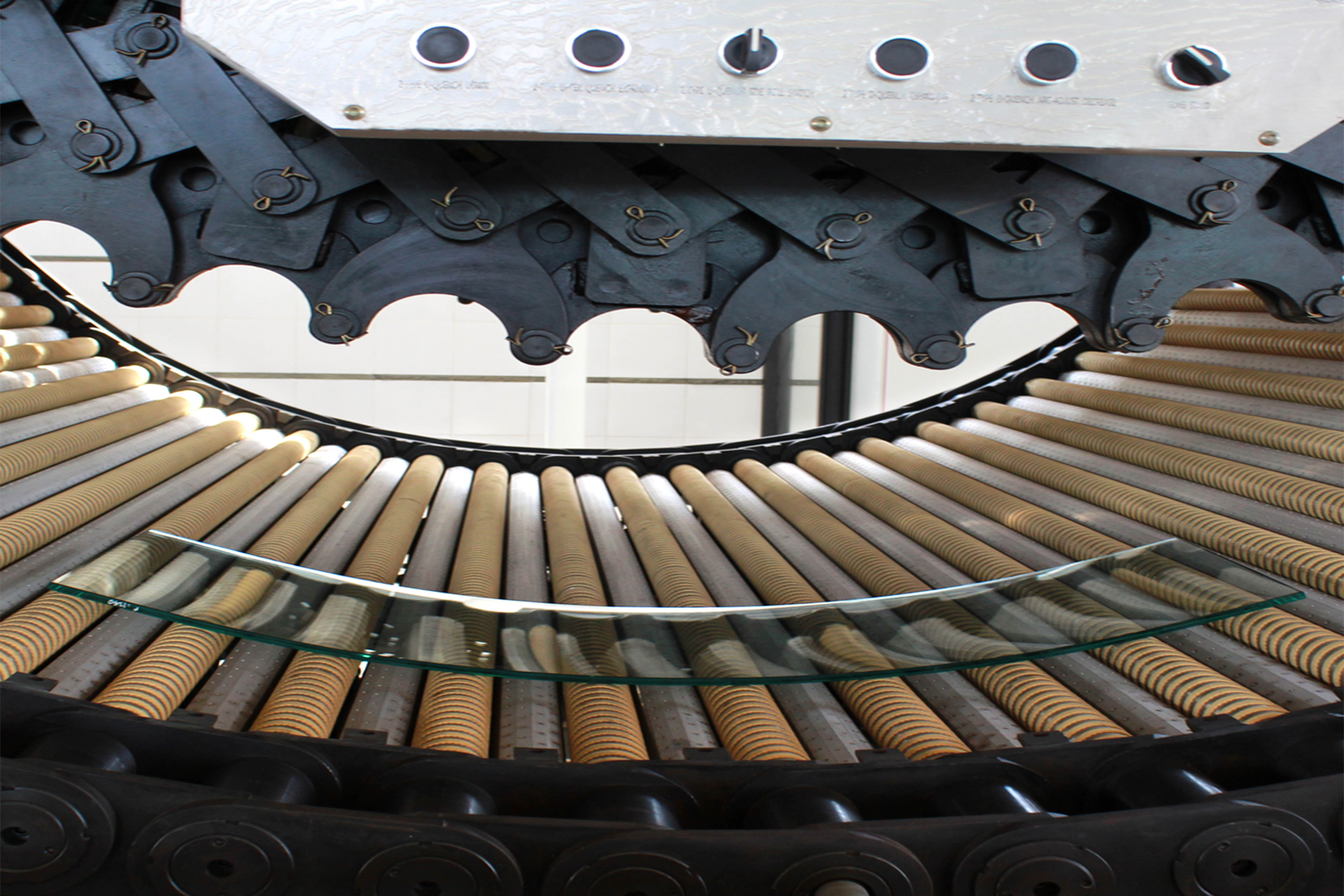

Curved Annealed

Thickness Range	:	6 mm – 19 mm+0.2/-0.0 mm
Maximum Size	:	2440 x 2500 mm
Minimum Size	:	300 x 600 mm
6 mm Radius	:	1000 mm
8 mm Radius	:	1500 mm
10 mm Radius	:	1800 mm
12 mm Radius	:	2000 mm
15-19 mm Radius	:	2500 mm
Standard ASTM C-1048 & BS.EN.1863

Flat Laminated

Thickness Range	:	5 mm - 19 mm
Maximum Size	:	2500 x 5000 mm
Minimum Size	:	300 x 450 mm
Low-E glass Emissivity Value 0.01 %

Flat Laminated Tempered

Thickness Range	:	5 mm - 19 mm
Maximum Size	:	2500 x 5000 mm
Minimum Size	:	300 x 450 mm
Low-E glass Emissivity Value 0.01 %

PVB :

• Kuraray
• KB PVB (kingboard) – No. 1 in China
• SEKISUI S-Lec – No. 1 in Japan & one of the best

Flat Laminated Ballistic-Resistant Glazing (Glass + SentryGlas + Spallshield)

Maximum Size	:	2500 x 5000 mm
Minimum Size	:	300 x 450 mm

Test Standards :

• Indoor UL 752
• NIJ 0108.01
• EN 1063

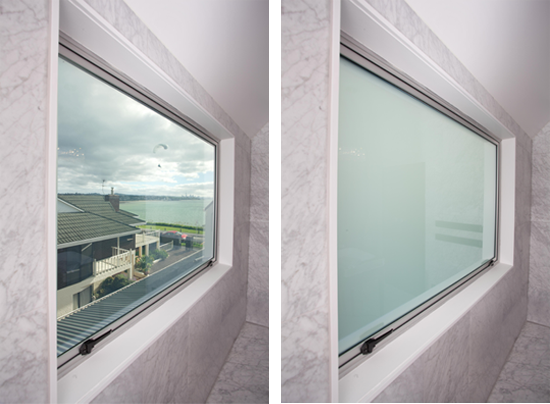

Flat Laminated (5+5 mm Glass + PDLC + EVA)

Maximum Size	:	1800 x 3600 mm
Minimum Size	:	1000 x 1000 mm
